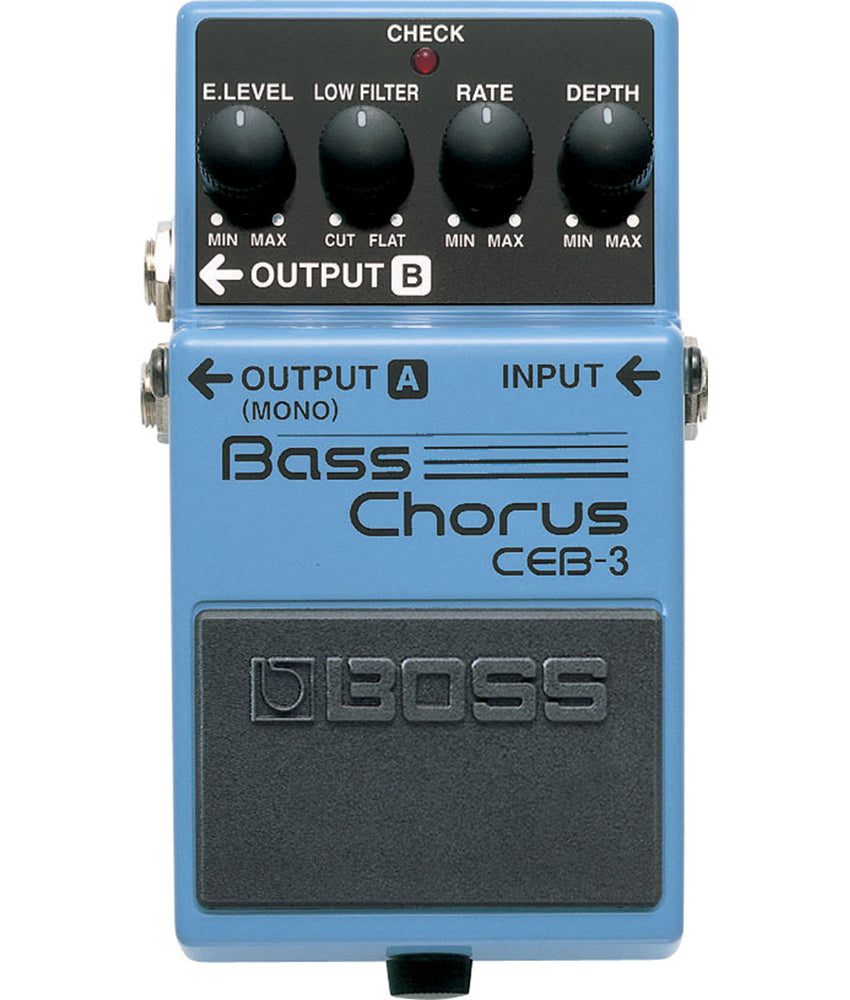

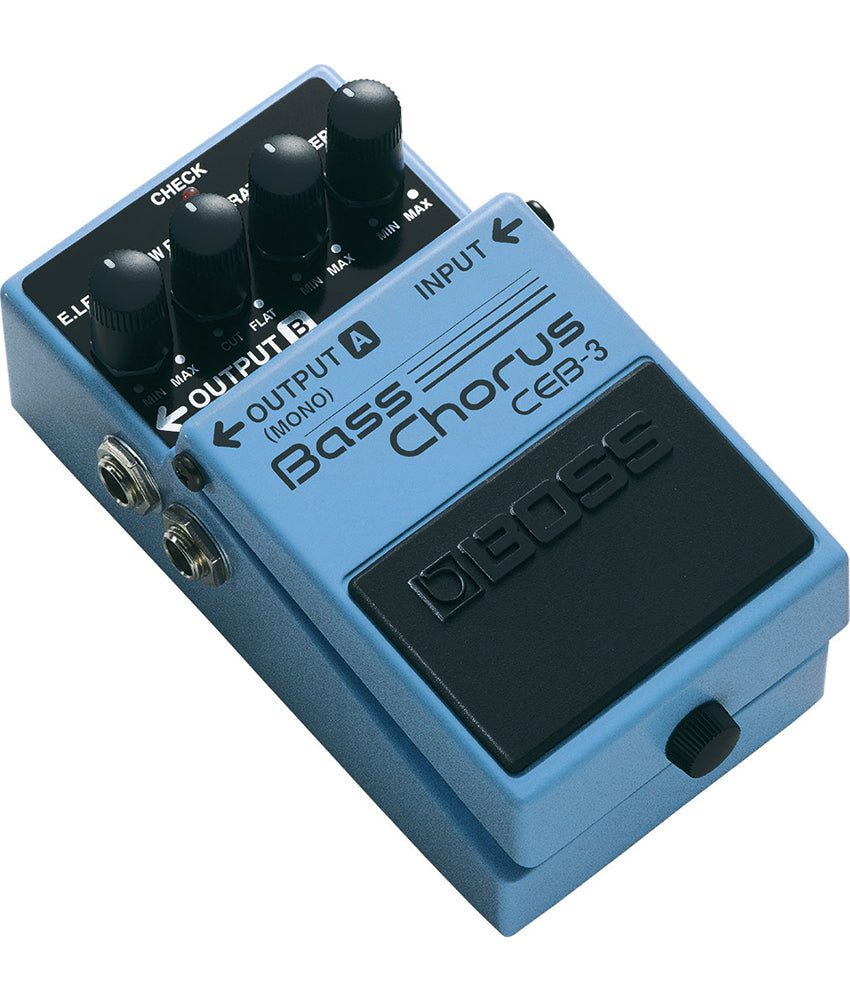

Boss CEB-3 Bass Chorus Guitar Pedal

Boss CEB-3 Bass Chorus Guitar Pedal

The CEB-3 Bass Chorus pedal offers a split-frequency chorus effect capable of applying warm, rich chorusing to the higher frequencies without muddying up the lows. It’s the perfect chorus pedal for bassists.

• Compact chorus pedal especially designed for bass guitar
• Applies chorus sound to the high frequencies without altering low frequencies
• Effect Level, Low Filter, Rate and Depth knobs permit precise tonal shaping
• BOSS five-year warranty

SPECIFICATIONS:
Nominal Input Level: -20 dBu

Input Impedance: 1 M ohm

Nominal Output Level: -20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance: 10 k ohms or greater

Bypass: Buffered bypass

Controls:
DEPTH (Modulation depth) knob
RATE (Modulation rate) knob
LOW FILTER knob
E.LEVEL knob
Pedal switch

Indicator:
CHECK indicator (Used for indication of check battery)

Connectors:
INPUT jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
DC IN jack

Power Supply:
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw: 22 mA

Expected battery life under continuous use:
Carbon: Approx. 24 hours
Alkaline: Approx. 43 hours
*These figures will vary depending on the actual conditions of use.

INCLUDED ACCESSORIES:
Owner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Carbon-zinc battery (9 V, 6F22)

Options (sold separately): AC adaptor: PSA series

SIZE AND WEIGHT:
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight(including battery): 450 g, 1 lb
