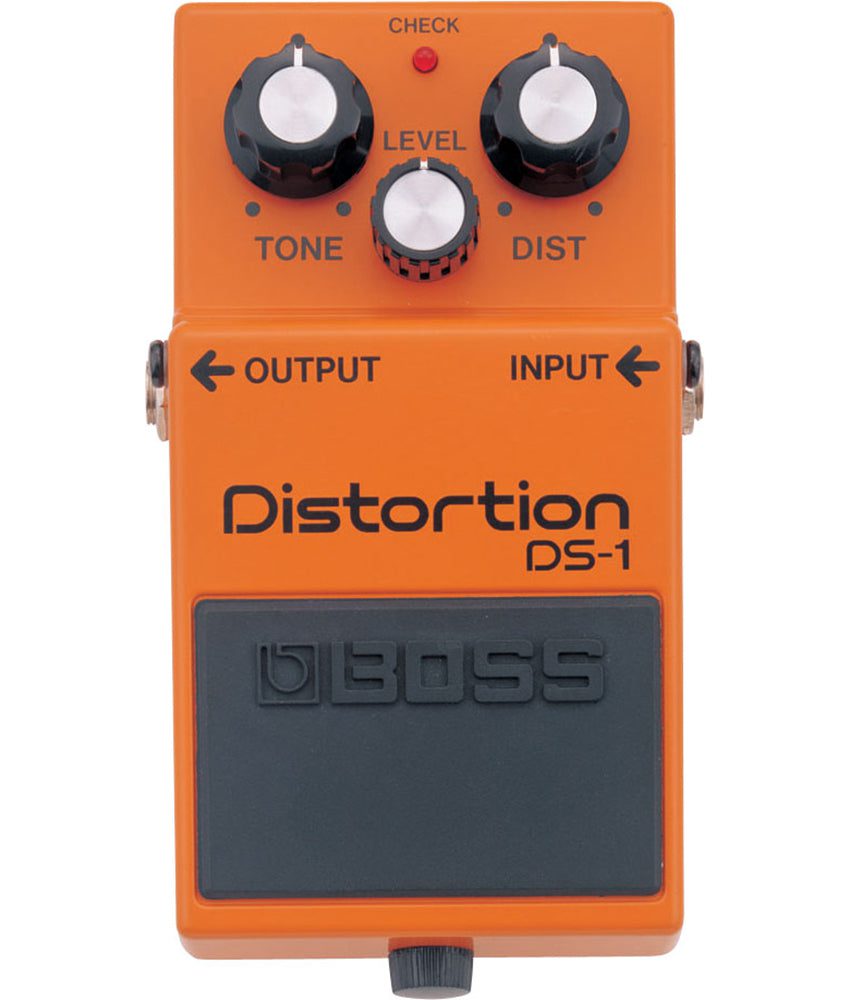

Boss DS-1 Distortion Guitar Pedal

Boss DS-1 Distortion Guitar Pedal

The DS-1 Distortion was introduced in 1978 and was BOSS’s first distortion pedal that defined a bold new sound, delivering hard-edged attack and smooth sustain that’s been a staple of players for generations. With the unchanged design it continues to inspire the creation of great music everywhere. The classic DS-1 tone is behind the signature sounds of numerous rock legends, and is ready to fuel your own signature sound today.

SPECIFICATIONS:
Nominal Input Level-20 dBu: Input Impedance1 M ohm
Nominal Output Level-20 dBu: Output Impedance1 k ohm
Recommended Load Impedance: 10 k ohms or greater

Controls:
Pedal switch
GAIN knob
TONE knob
LEVEL knob

Indicator: CHECK indicator (Used for indication of check battery)
Connectors: INPUT jack: 1/4-inch phone type

OUTPUT jack:
1/4-inch phone type
DC IN jack

Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw: 20 mA

Expected battery life under continuous use:
Carbon: Approx. 24.5 hours
Alkaline: Approx. 44 hours
*These figures will vary depending on the actual conditions of use.

INCLUDED ACCESSORIES:
Owner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Carbon-zinc battery (9 V, 6F22)

Option (sold separately)AC adaptor (PSA series)
