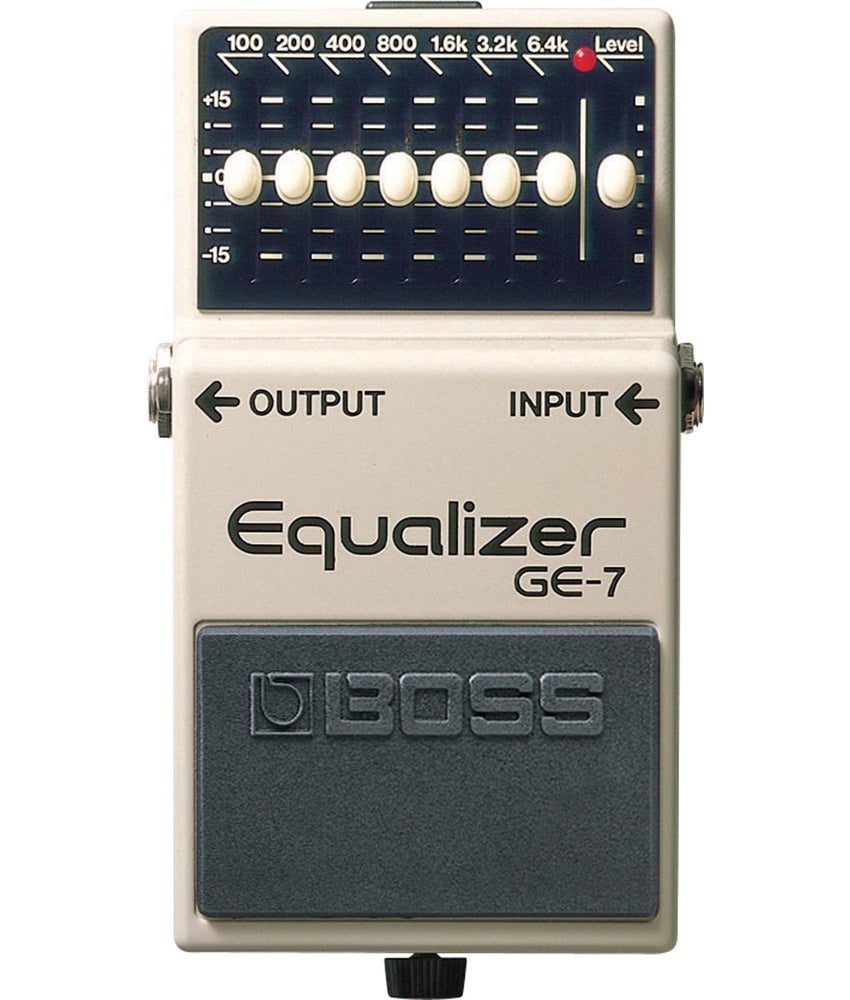

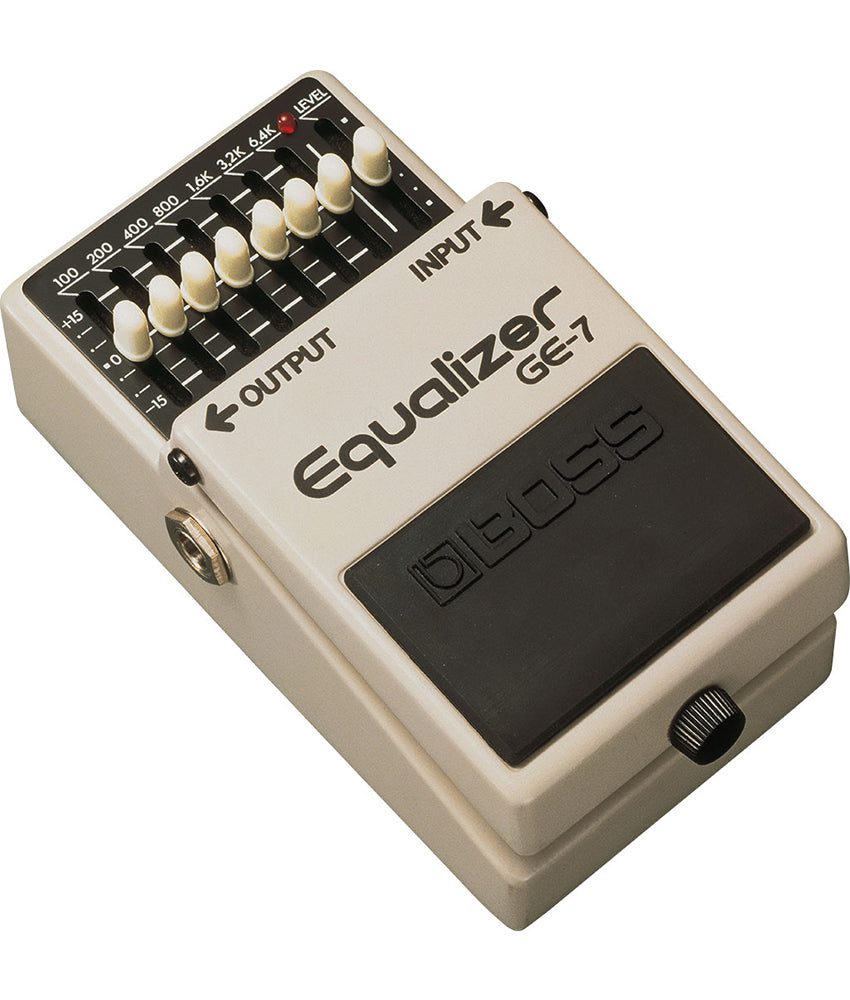

Boss GE-7 7-Band Graphic Equalizer Guitar Pedal

Boss GE-7 7-Band Graphic Equalizer Guitar Pedal

The GE-7 Equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.

SPECIFICATIONS:
Nominal Input Level: -20 dBu
Input Impedance: 470 k ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohm or greater
Bypass: Buffered bypass
Controls:
Level Control knob
Equalizer Control knob
100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz
Pedal switch

Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors:
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply:
Carbon-zinc battery (9 V, 6F22)
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw: 10 mA

Expected battery life under continuous use:
Carbon: Approx. 37 hours
Alkaline: Approx. 67 hours
*These figures will vary depending on the actual conditions of use.

INCLUDED ACCESSORIES:
Owner’s Manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Carbon-zinc battery (9 V, 6F22)

Options (sold separately): AC adaptor: PSA series

SIZE AND WEIGHT:
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 450 g, 1 lb
