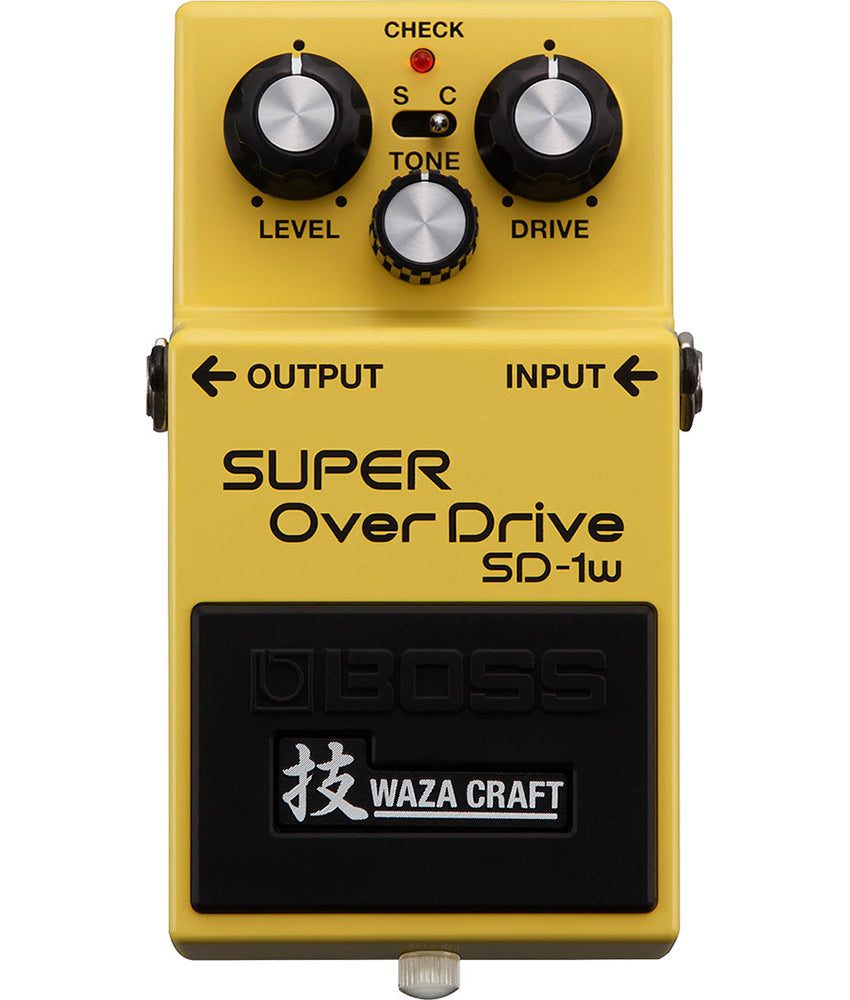

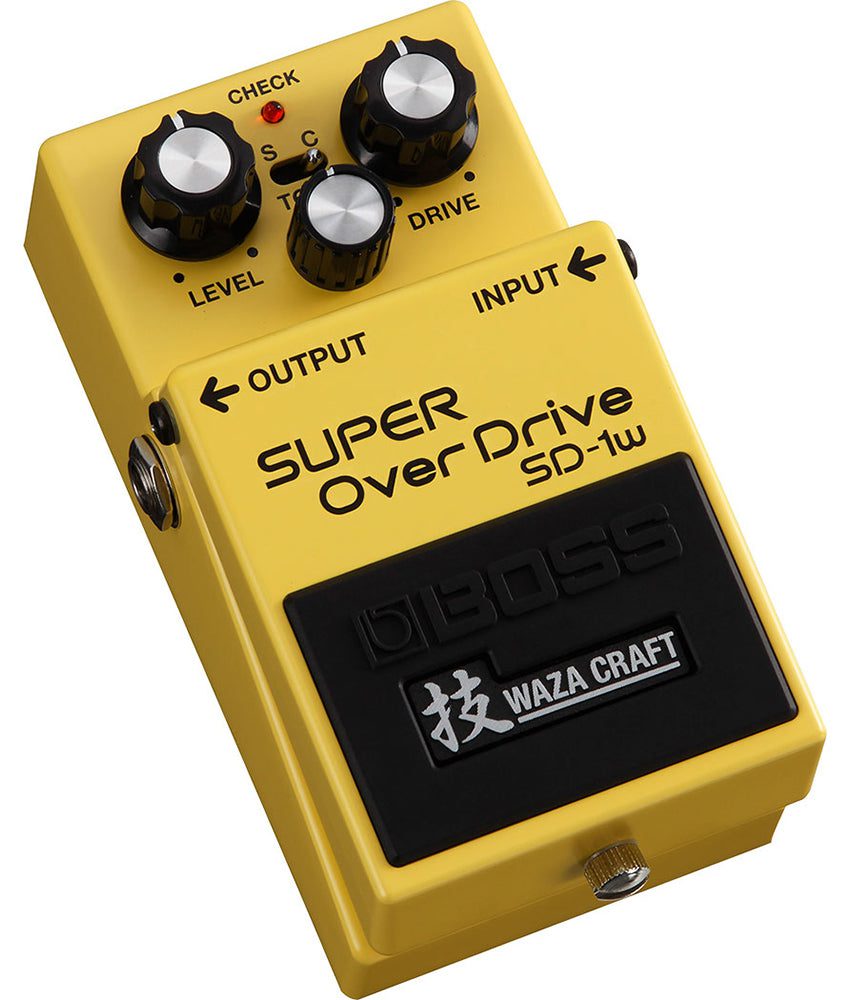

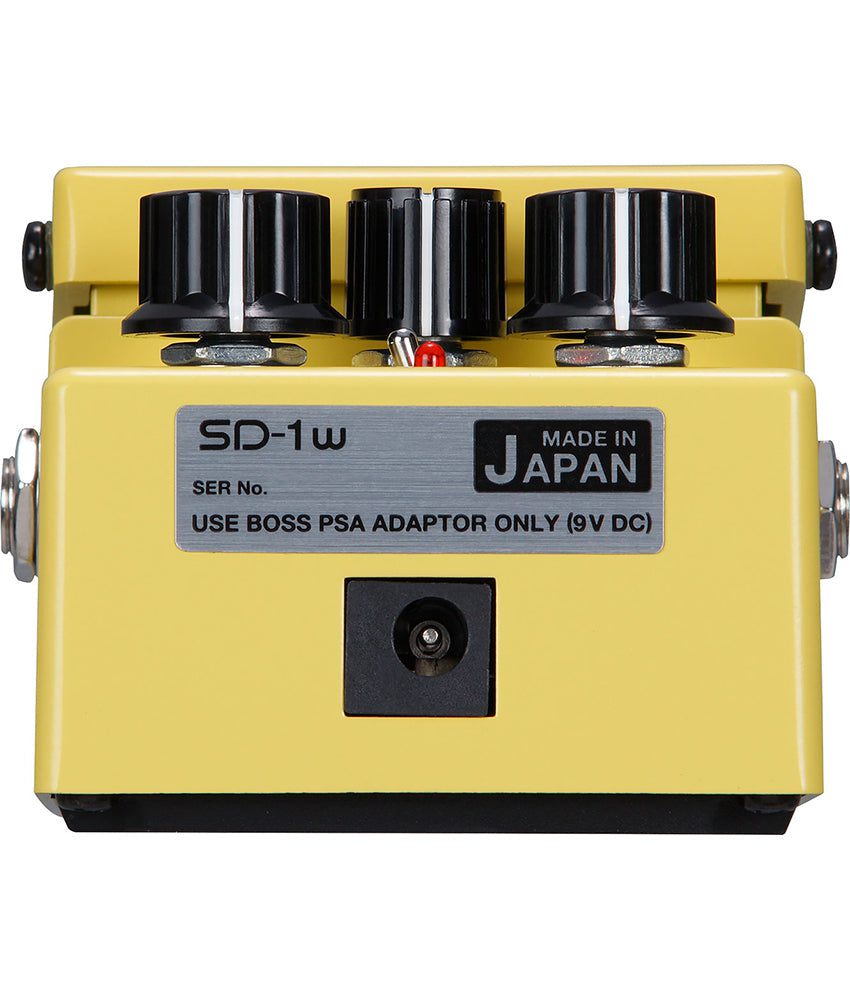

Boss SD-1W Waza Craft Super Overdrive Pedal

The Waza Craft SD-1W Super Overdrive delivers a premium stomp experience that fans of customized pedal tone will love. Crafted with an ear for highly refined sound, the SD-1W hot rods the famous BOSS overdrive with all-discrete analog circuitry. Standard mode captures the classic SD-1 sound while Custom mode offers new tonal range and gain.

• Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
• Premium sound based on the legendary SD-1 Super Overdrive
• Newly revised, all-analog discrete amplifier circuit
• Standard and Custom sound modes
• Highly responsive to picking dynamics and volume changes
• BOSS five-year warranty

SPECIFICATIONS:
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater

Controls:
Pedal switch
Mode switch
LEVEL knob
TONE knob
DRIVE knob

Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors:
INPUT jack
OUTPUT jack
DC IN jack

Power Supply:
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (sold separately)

Current Draw:15 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.):
Carbon: Approx. 25 hours
Alkaline: Approx. 42 hours

INCLUDED ACCESSORIES:
Owner’s Manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTE,” and “Information”)
Carbon-zinc battery (9 V, 6F22)

Option (sold separately): AC adaptor (PSA series)

SIZE AND WEIGHT:
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight: 430 g, 0 lbs. 16 oz.
