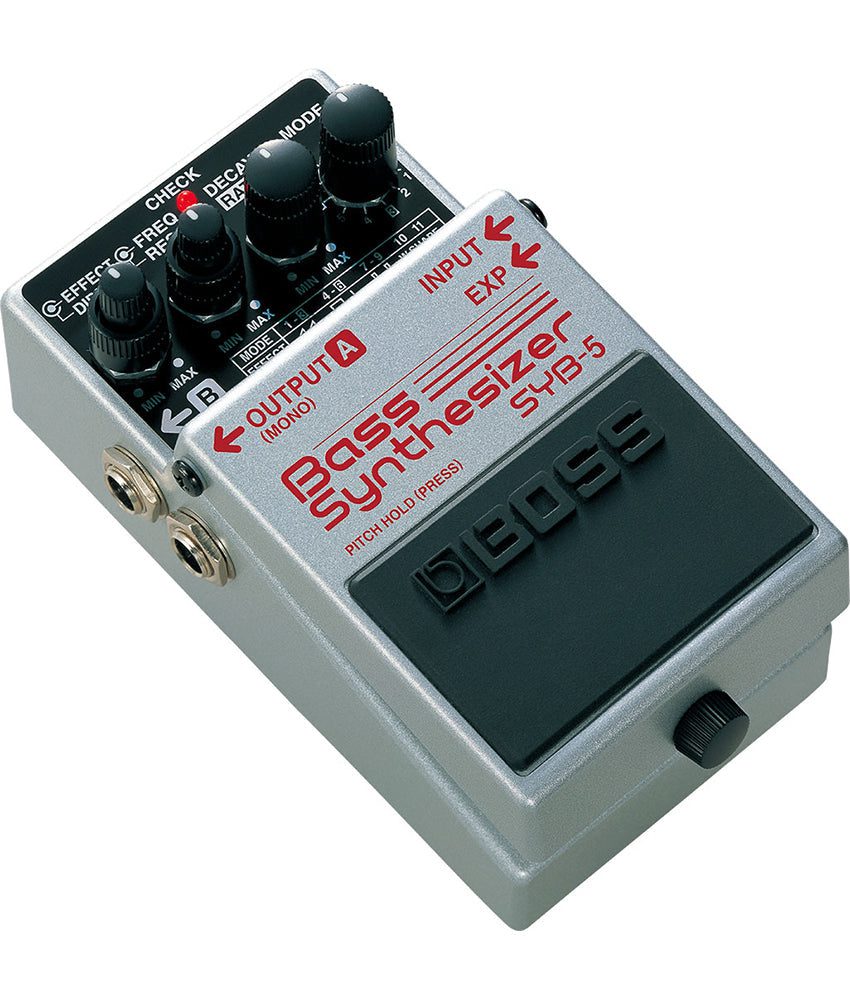

Boss SYB-5 Bass Synthesizer Pedal

The SYB-5 is the next-generation bass-synth pedal. Utilizing the latest in DSP technology, the SYB-5 faithfully reproduces the classic sound characteristics of analog synthesizers with enhanced punch and power.

• 11 DSP variations of saw, square, and pulse synth waves
• Enhanced Wave Shape mode provides sharper sounds
• Hold notes with the onboard pedal and jam over the top
• Control filter cutoff and LFO rate via EV-5 Expression Pedal (sold separately)
• BOSS five-year warranty

SPECIFICATIONS:
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm.
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass

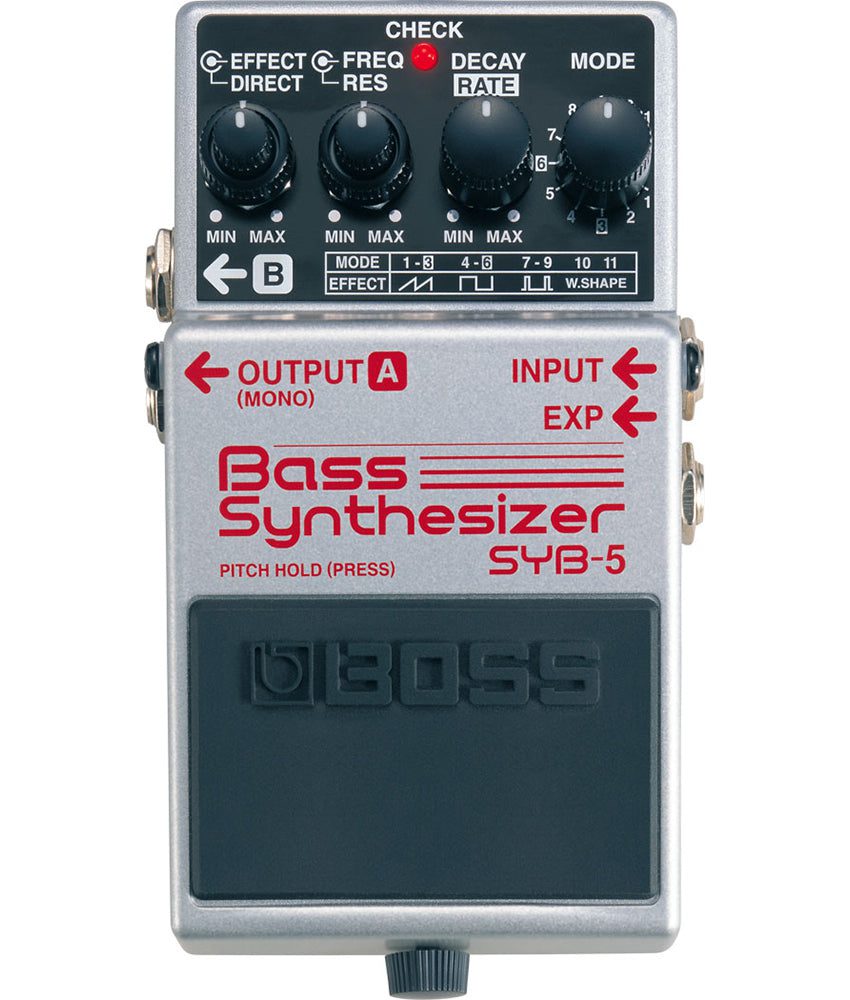

Controls:
MODE knob
DECAY/RATE knob
FREQ/RES(Frequency/Resonance) knob
EFFECT/DIRECT(Effect Level/Direct Level) knob
Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)

Connectors:
INPUT jack: 1/4-inch phone type
OUTPUT A(MONO)/OUTPUT B jack: 1/4-inch phone type
EXP jack: 1/4-inch stereo phone type
DC IN jack

Power Supply:
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)

Current Draw: 50 mA

Expected battery life under continuous use:
Alkaline: Approx. 6 hours
Carbon: Approx. 2 hours
*These figures will vary depending on the actual conditions of use.

INCLUDED ACCESSORIES:
Owner’s manual
Mode Label
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61)

Options (sold separately):
AC adaptor: PSA series
Expression pedal: Roland EV-5/BOSS EV-30, FV-500L, FV-500H

SIZE AND WEIGHT:
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 440 g, 1 lb
